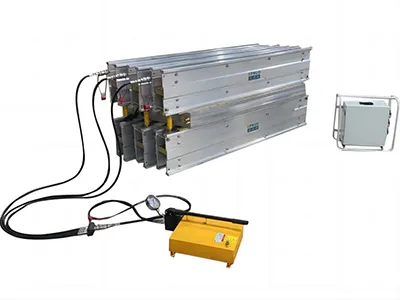

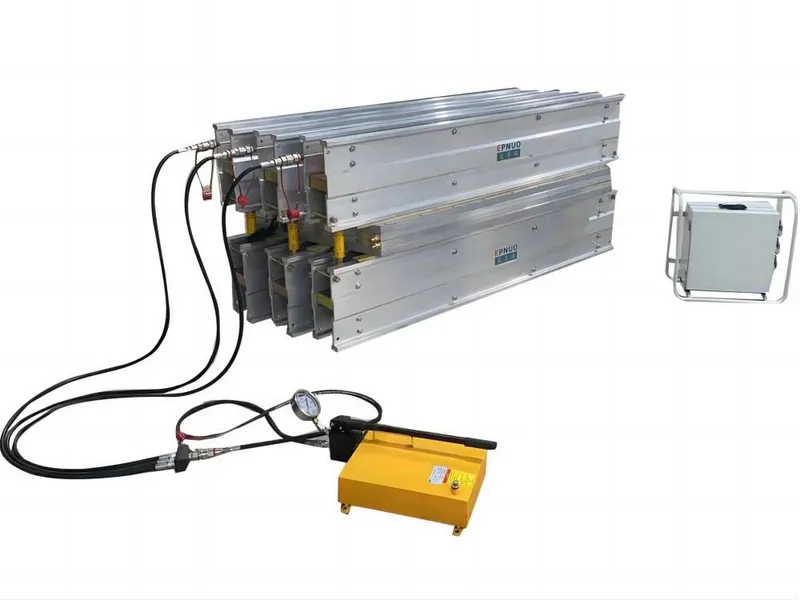

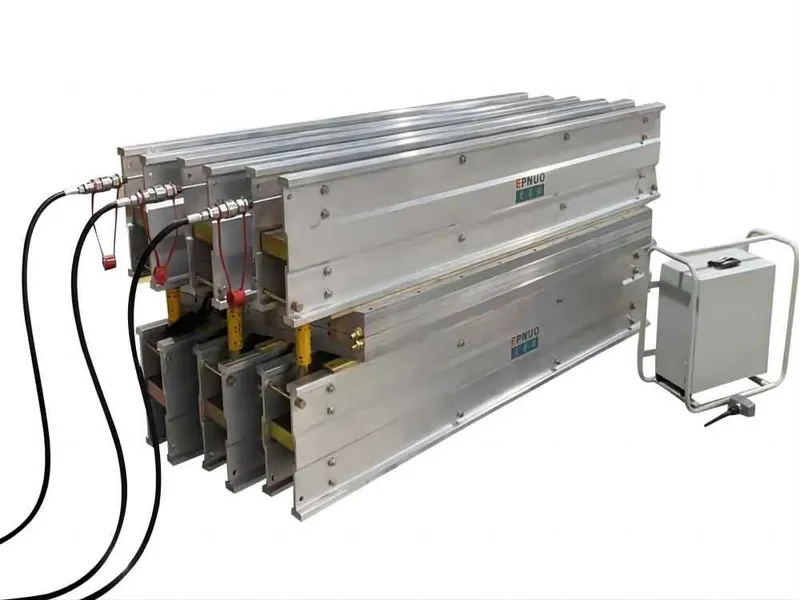

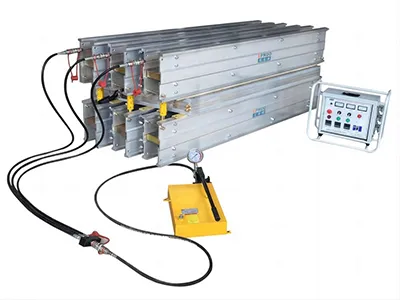

The hydraulic vulcanizing press is engineered for cold climate applications, where traditional water-cooled vulcanizers may fail due to freezing or pipe damage. Designed without the need for water-based cooling systems, this model ensures uninterrupted performance even in sub-zero temperatures, making it an ideal solution for operations in Arctic or winter-prone regions.
The standard heating plate length is 840 mm, with additional options available in 455 mm, 654 mm, 710 mm, and 1000 mm, allowing flexibility to match different belt sizes and splice lengths. Built to perform in harsh environments, the hydraulic press offers consistent pressure and reliable heating ensuring splice integrity regardless of external conditions.
The hydraulic vulcanizing press is suitable for splicing and repairing EP conveyor belts, nylon belts, cotton canvas belts, and conveyor belts with steel cable cores. It is widely used in mining, metallurgy, ore terminals, grain terminals, building materials, cement, chemical processing, coal-fired power plants, and tunnel construction projects, especially in regions with cold climates, where water-based vulcanizers may not function reliably.
| Model | Heating Plate Size(mm) | Belt Width(mm) | Total Power (kW) | Weight of Heaviest Part(kg) | Dimensions (L×W×H) (mm) | Total Weight(kg) | Pressure Pump | Control Box |
| A×B(Rhombic Splice Length×Width) |
||||||||
| EPN-650HY | 840×838 | 650 | 7.6 | 45.5 | 1142×830×530 | 385 | 1 | 1 |
| EPN-800HY | 840×989 | 800 | 8.4 | 53.8 | 1320×830×530 | 490 | 1 | 1 |
| EPN-1000HY | 840×1190 | 1000 | 11.8 | 60.5 | 1440×830×530 | 525 | 1 | 1 |
| EPN-1200HY | 840×1420 | 1200 | 13.5 | 69.3 | 1680×830×530 | 689 | 1 | 1 |
| EPN-1400HY | 840×1640 | 1400 | 15.6 | 78.8 | 1950×830×660 | 792 | 1 | 1 |
| EPN-1600HY | 840×1808 | 1600 | 17.5 | 89.7 | 2060×830×660 | 899 | 1 | 1 |
| EPN-1800HY | 840×2078 | 1800 | 19.7 | 98.3 | 2320×830×790 | 987 | 1 | 1 |
| EPN-2000HY | 840×2328 | 2000 | 23 | 107.4 | 2582×830×790 | 1056 | 1 | 1 |
| EPN-2200HY | 840×2508 | 2200 | 25.6 | 130.5 | 2842×830×980 | 1125 | 1 | 1 |
| EPN-2400HY | 840×2638 | 2400 | 28.2 | 140 | 2950×830×980 | 1278 | 1 | 1 |
A hydraulic vulcanizing press offers more uniform pressure distribution during the splicing process, resulting in greater consistency and dimensional accuracy. Its hydraulic system allows precise control over pressure and speed to meet varying process requirements. Additionally, it operates more quietly and delivers higher energy efficiency than many conventional models.
A typical hydraulic vulcanizing press consists of main press body, clamping mechanism, hydraulic system, heating system and control system.
