The PVC vulcanizing press is a specialized machine designed for pressing and vulcanizing PVC-based conveyor belts and plastic products. It features an electric heating system with automatic temperature control, allowing users to adjust and maintain stable temperatures within a specific range.
This air-cooled vulcanizer is ideal for splicing PVC conveyor belts with belt widths ranging from 500 mm to 4,000 mm, offering reliable performance and consistent results for a wide range of industrial applications.
PVC vulcanizing equipment is widely used for splicing and processing industrial conveyor belts, particularly in food processing facilities and automated production lines across various industries.
| Model | Platen Size(mm) | Belt Width(mm) | Power(kW) | Dimensions (L×W×H) (mm) | Weight (kg) | Pump |
| A200×500 | 200×550 | 500 | 2300 | 700×200×230 | 40 | 1 |
| A200×600 | 200×650 | 600 | 2400 | 800×200×230 | 60 | 1 |
| A200×800 | 200×850 | 800 | 2800 | 1000×200×250 | 78 | 1 |
| A200×1000 | 200×1050 | 1000 | 3200 | 1200×200×250 | 89 | 1 |
| A200×1200 | 200×1250 | 1200 | 3600 | 1450×200×250 | 95 | 1 |
| A200×1500 | 200×1650 | 1500 | 4000 | 1850×200×460 | 109 | 1 |
| A200×1600 | 200×1750 | 1600 | 4800 | 1950×200×460 | 175 | 1 |
| A200×1800 | 200×1950 | 1800 | 5280 | 2150×200×460 | 195 | 1 |
| A200×2000 | 200×2150 | 2000 | 5920 | 2350×200×460 | 210 | 1 |
| A200×2200 | 200×2350 | 2200 | 4800 | 2550×200×460 | 230 | 1 |
| A200×2500 | 200×2650 | 2500 | 5200 | 2850×200×620 | 275 | 1 |
| A200×3000 | 200×3150 | 3000 | 8800 | 3350×200×660 | 320 | 1 |
| A200×4000 | 200×4150 | 4000 | 9600 | 4350×200×760 | 430 | 1 |
Note: All equipment listed above is designed for splicing PVC, PU, PE conveyor belts, as well as belts made from rubber-based materials. We also manufacture belt layer separators and finger punching machines.

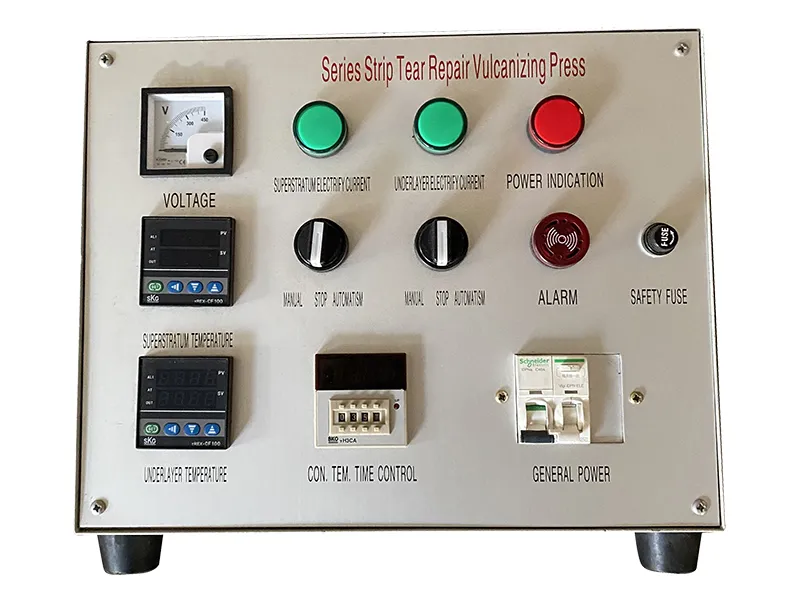

The vulcanizing press consists of a heating system, pressure system, control unit, and molding (press) plates.
Selection depends on several factors, including production capacity, product size and shape, required vulcanizing temperature and pressure, and budget.
The temperature control system maintains precision within a range of ±1°C to ±2°C, ensuring consistent curing quality.
We’re here to help with expert advice and prompt support with efficient solutions.
