Frame Style Vulcanizing Press

Lightweight frame press for quick and easy splicing process
Frame Style Vulcanizing Press
Minimum Vulcanization Width: 600mm
Frame Style Vulcanizing Press
Maximum Vulcanization Width: 2150mm
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press
Conveyor Belt Vulcanizing Press

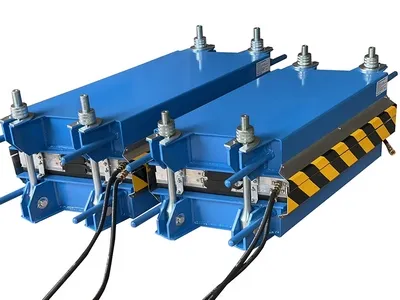

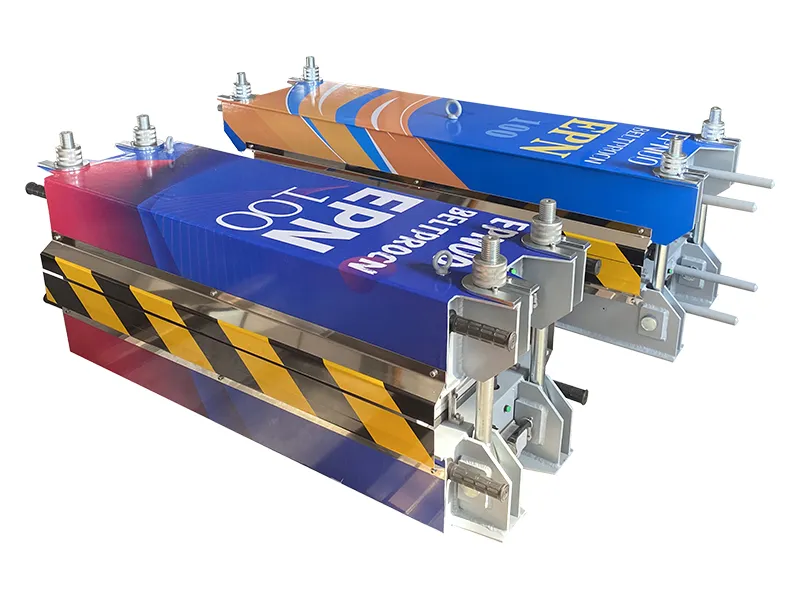

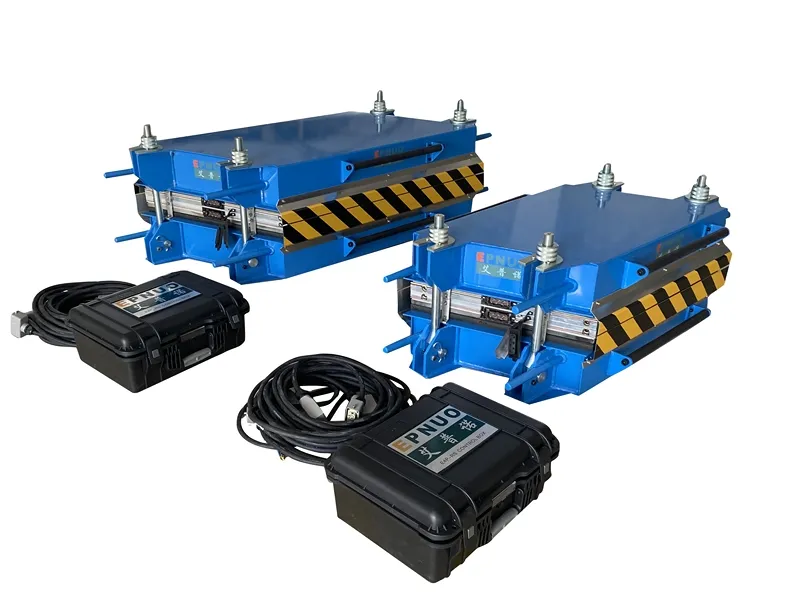

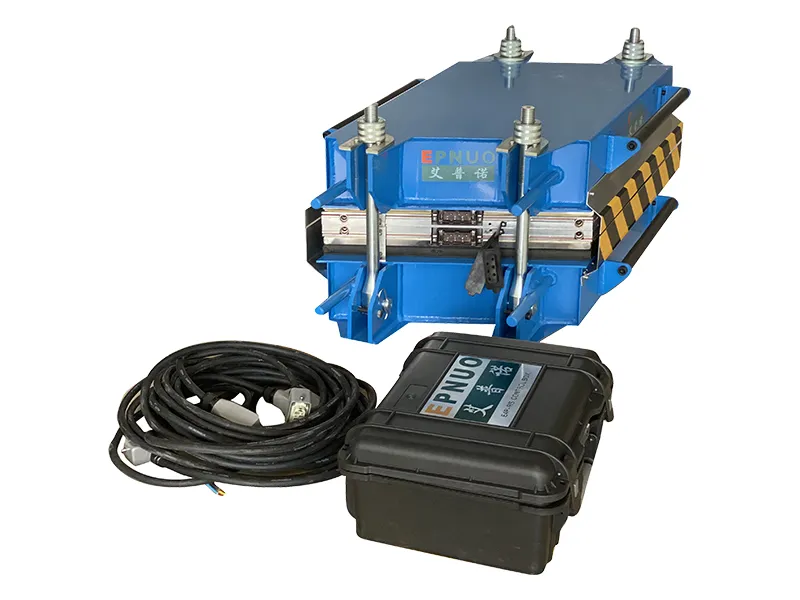

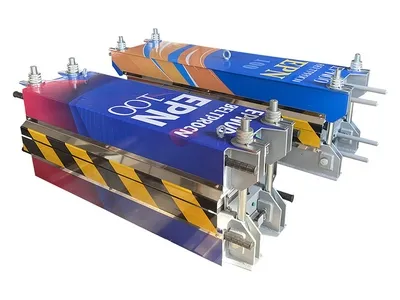

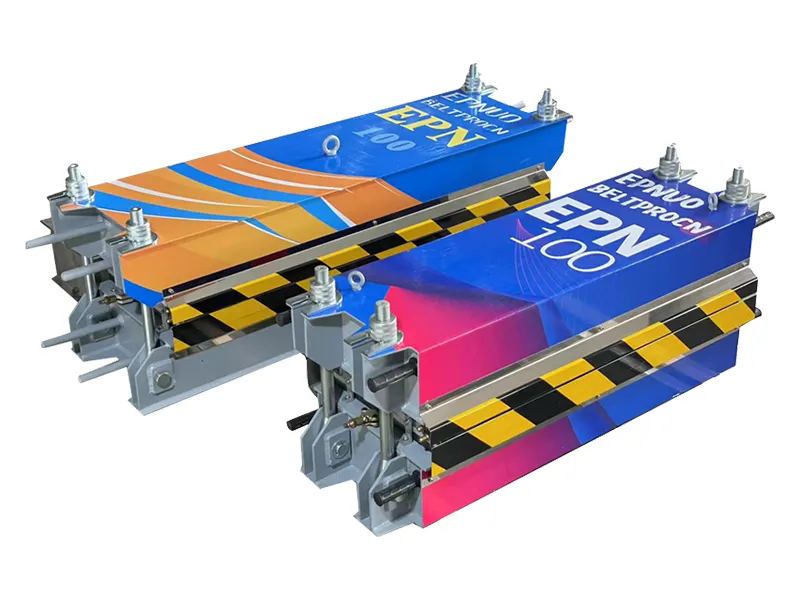

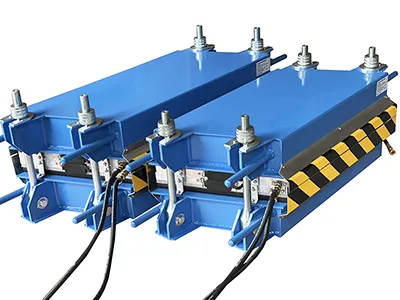

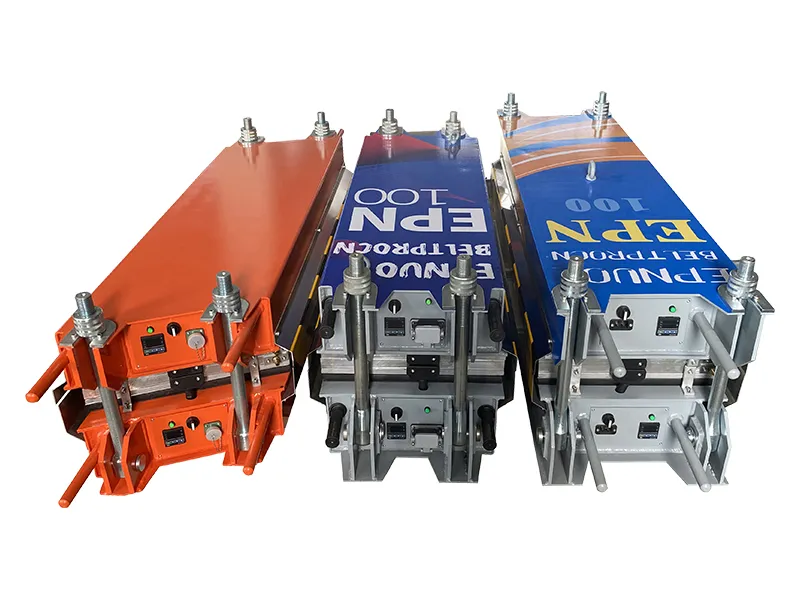

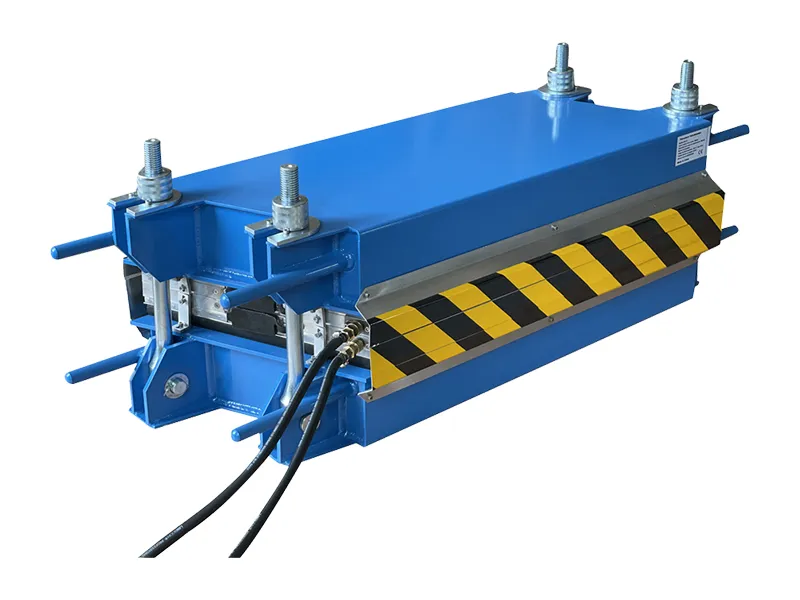

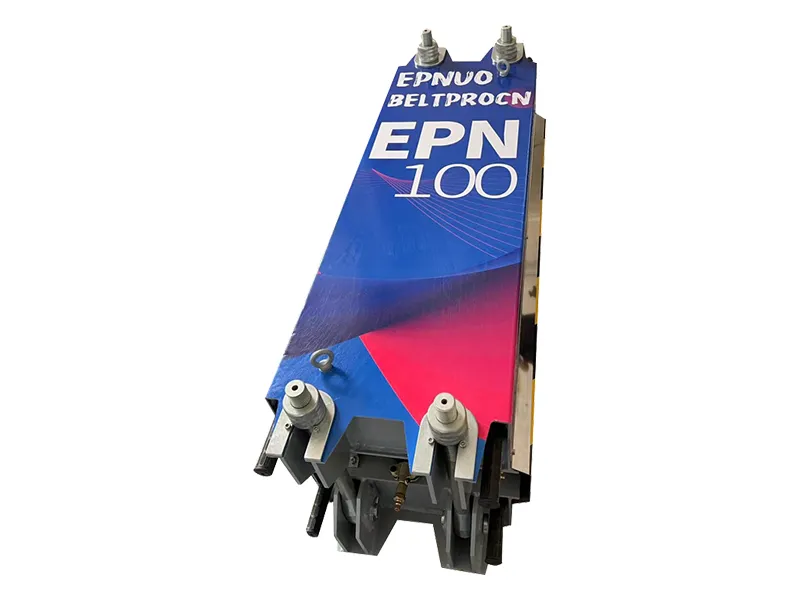

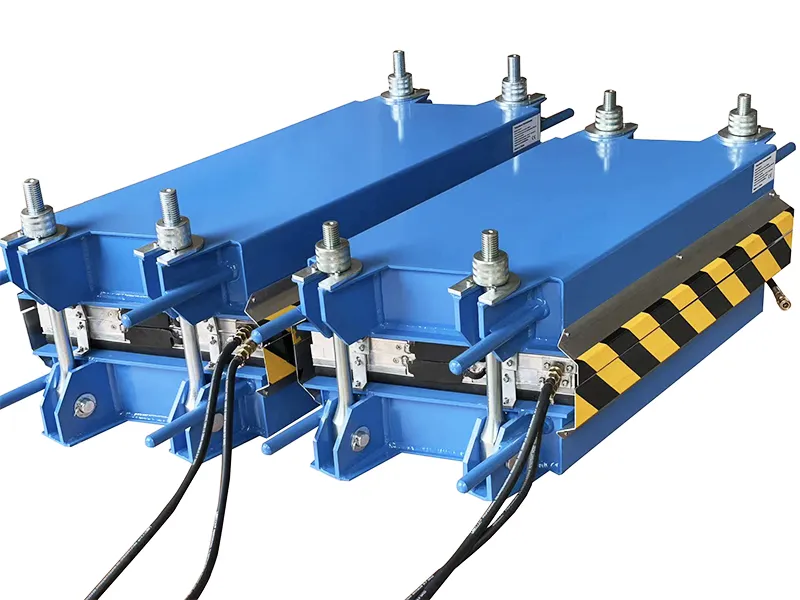

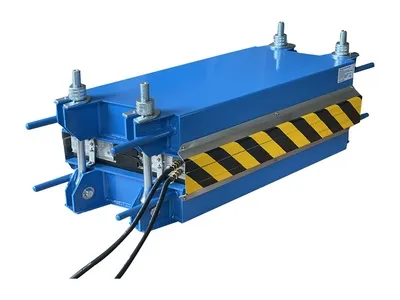

The high-performance aluminum frame vulcanizing press is engineered for quick, simple, and efficient conveyor belt splicing. Its lightweight yet durable construction makes it ideal for on-site work and frequent repositioning. Each unit features integrated end handles and positioning rings (for larger models), allowing operators to easily align the press at the splice location. The TW Series requires no on-site assembly, consisting of just two main components (top and bottom), and weighs only one-third of a conventional vulcanizing press. This design makes it especially suitable for maintenance teams that need mobility, speed, and ease of use without sacrificing performance.

Applications

The frame-style vulcanizing press is suitable for splicing and repairing EP conveyor belts, nylon belts, cotton canvas belts, and conveyor belts with steel cable cores. It is widely used in industries such as mining, metallurgy, ore terminals, grain terminals, building materials, cement, chemical processing, coal-fired power plants, and tunnel engineering.

Request a Quote DownLoad
Specifications
EPN - 100 PSI - Rhomboid Models (all platens built on a 22 degree bias with a “left hand” lead.)
Model Heating Plate Size (mm) Belt Width (mm) Total Weight (kg) Overall Height (mm) Overall Width (mm) Overall Length (mm) Components
Pump Control Box
EPN1930-TW 480×760 600 161 405 495 1460 1 1
EPN2830-TW 710×760 600 175 405 708 1460 1 1
EPN1937-TW 480×940 800 204 455 495 1640 1 1
EPN2837-TW 710×940 800 230 455 708 1640 1 1
EPN1943-TW 480× 1090 900 209 480 495 1790 1 1
EPN2843-TW 710× 1090 900 238/285 480 708 1790 1 1
EPN1947-TW 480× 1220 1000 218 480 495 1920 1 1
EPN2847-TW 710× 1220 1000 284 480 708 1920 1 1
EPN1356-TW 330× 1420 1200 159 535 355 2120 1 1
EPN1956-TW 480× 1420 1200 290 560 495 2120 1 1
EPN1962-TW 480× 1575 1350 322 585 495 2275 1 1
EPN2856-TW 710× 1420 1200 375 560 708 2120 1 1
EPN1964-TW 480× 1625 1400 335 590 495 2325 1 1
EPN2864-TW 710× 1625 1400 435 635 708 2325 1 1
EPN1971-TW 480× 1880 1600 408 635 495 2580 1 1
EPN2871-TW 710× 1880 1600 536 685 708 2580 1 1
EPN1984-TW 480×2135 1850 472 710 495 2835 1 1
EPN2284-TW 560×2135 1850 548 760 569 2835 1 1
EPN2884-TW 710×2135 1850 698 750 708 2835 1 1
EPN1990-TW 480×2285 2000 550 780 495 2985 1 1
EPN1996-TW 480×2440 2150 720 815 495 3140 1 1
EPN1930-TW 480×760 600 161 405 495 1460 1 1
EPN2830-TW 710×760 600 175 405 708 1460 1 1
EPN1937-TW 480×940 800 204 455 495 1640 1 1
EPN2837-TW 710×940 800 230 455 708 1640 1 1
EPN1943-TW 480× 1090 900 209 480 495 1790 1 1
EPN2843-TW 710× 1090 900 238/285 480 708 1790 1 1
EPN1947-TW 480× 1220 1000 218 480 495 1920 1 1
EPN2847-TW 710× 1220 1000 284 480 708 1920 1 1
EPN1356-TW 330× 1420 1200 159 535 355 2120 1 1
EPN1956-TW 480× 1420 1200 290 560 495 2120 1 1
EPN1962-TW 480× 1575 1350 322 585 495 2275 1 1
EPN2856-TW 710× 1420 1200 375 560 708 2120 1 1
EPN1964-TW 480× 1625 1400 335 590 495 2325 1 1
EPN2864-TW 710× 1625 1400 435 635 708 2325 1 1
EPN1971-TW 480× 1880 1600 408 635 495 2580 1 1
EPN2871-TW 710× 1880 1600 536 685 708 2580 1 1
EPN1984-TW 480×2135 1850 472 710 495 2835 1 1
EPN2284-TW 560×2135 1850 548 760 569 2835 1 1
EPN2884-TW 710×2135 1850 698 750 708 2835 1 1
EPN1990-TW 480×2285 2000 550 780 495 2985 1 1
EPN1996-TW 480×2440 2150 720 815 495 3140 1 1
Notes
EPN1956-TW, “EPN” refers to the manufacturer, while the model number indicates the heating plate dimensions in inches: 19 inches in length and 56 inches in width. “TW” stands for two-piece press. Unlike traditional vulcanizing presses, this model is simpler, more flexible, and easier to use.
No on-site assembly is required, the press consists of just two main components (top and bottom). Customers can choose to use a single unit or multiple units depending on the splice length. The standard heating plate length is 710 mm, with other options available including 355 mm, 455 mm, and 660 mm, to meet different operational needs.
Custom heavy-duty frames are available upon request for continuous workshop use or frequent repeat operations. Please consult your local EPNUO vulcanizer representative for details.Not all models include side handles. Models marked with an asterisk (*) come with side handles as standard. This adds 6 inches to the total width. Optional 1/8" (3 mm) aluminum plates are available for side-by-side press arrangements, provided upon request.
Features
EPNUO “pressure bag” for uniform pressure system across splice surface
Built-in cooling system within platens
Innovative silicone element fast heating system
Lightweight aluminum frame
EPNUO control panel for managing vulcanizing temperature
Utilizes innovative platen system that combines an extruded aluminum base, silicone heating element, and durable composite insulation. Each platen conforms to belt surface variations, ensuring uniform results.
Maximum temperature: 163°C (325°F)
Available in rhomboid or rectangular configurations
Upper and lower sections are made from durable yet lightweight aluminum, allowing for easy transport and quick positioning. Smaller models feature ergonomic carrying handles

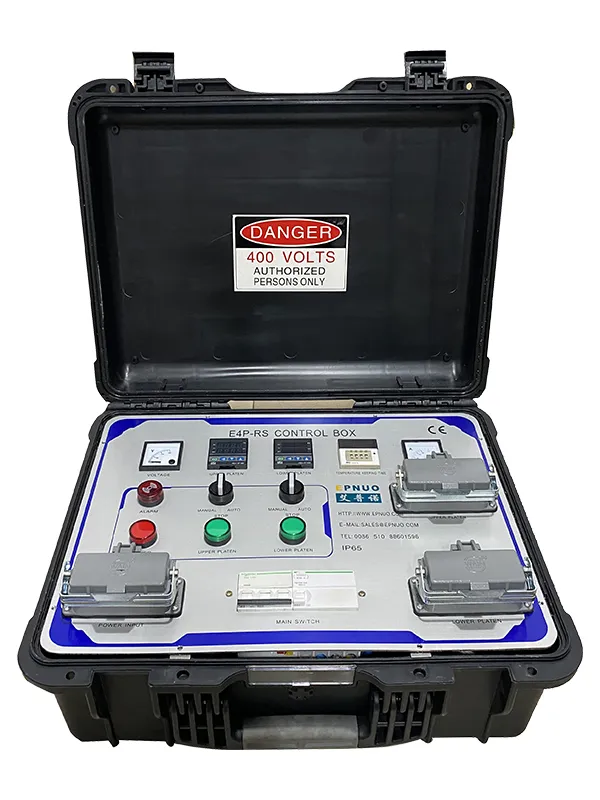

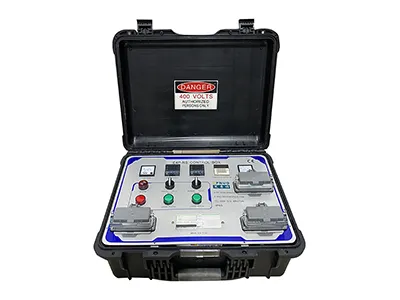

Standard E4P-RS control unit compatible with 230V single-phase or three-phase operation
Optional touchscreen version includes LCD display for heating temperature and curing time, real-time data logging for temperature, pressure, ambient conditions, and operation records, and USB interface for exporting vulcanization data
Spare Parts

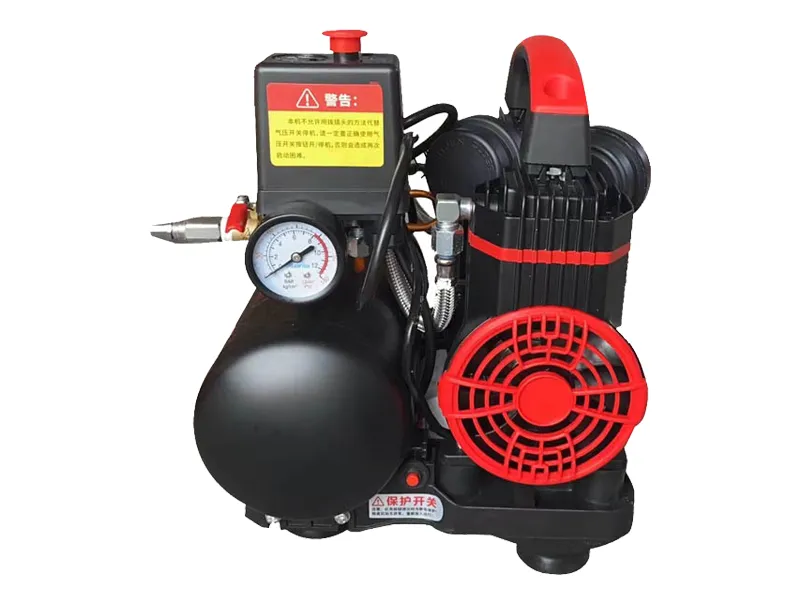

  • Frame Style Vulcanizing PressAir Pump
  • Frame Style Vulcanizing PressControl Box
Can vulcanization parameters be adjusted during the process?

In most cases, it is not recommended to make significant adjustments to vulcanization parameters during the process, as this may negatively affect the quality and performance of the rubber product. However, in certain situations such as minor deviations in temperature or pressure due to equipment fluctuations, small adjustments may be made, provided the operator has sufficient expertise and a strong understanding of the rubber material and vulcanization process to ensure product quality is not compromised.

How do you calibrate the temperature and pressure sensors on a box-type vulcanizing press?

To calibrate the temperature sensor, use a standard thermometer with known accuracy. Place both the thermometer and the sensor in the same controlled environment (such as a temperature-controlled oven or water bath). Gradually heat or cool to various temperature points, compare the readings, and adjust the sensor based on the deviations. For pressure sensor calibration, use a pressure calibration device. Connect it to the press’s pressure sensor and apply known pressure levels. Compare the sensor’s readings with the calibration standard and adjust as needed to align the readings accurately.

Questions About Vulcanizing Presses or Belt Repair Tools?
