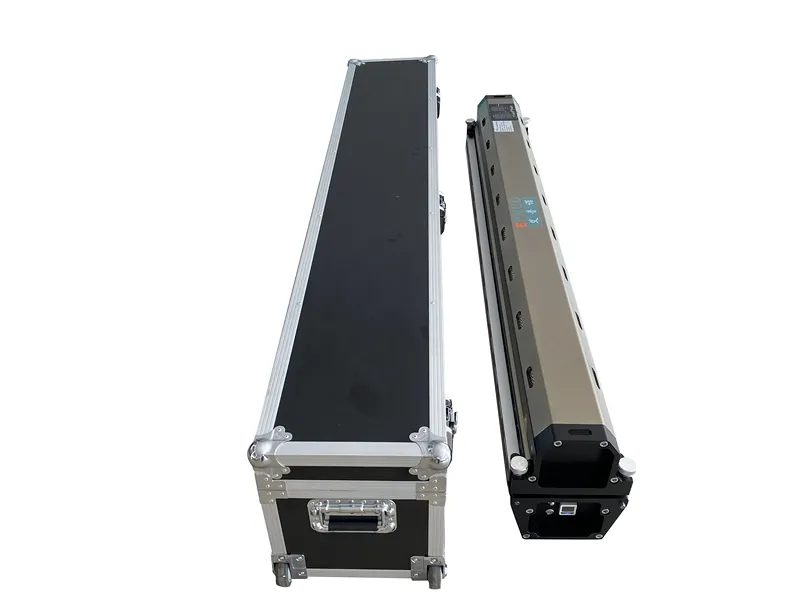

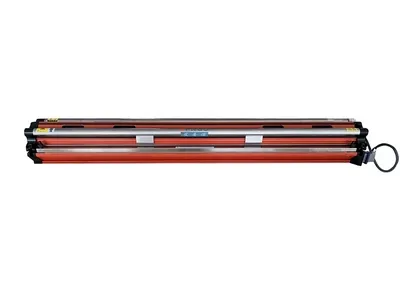

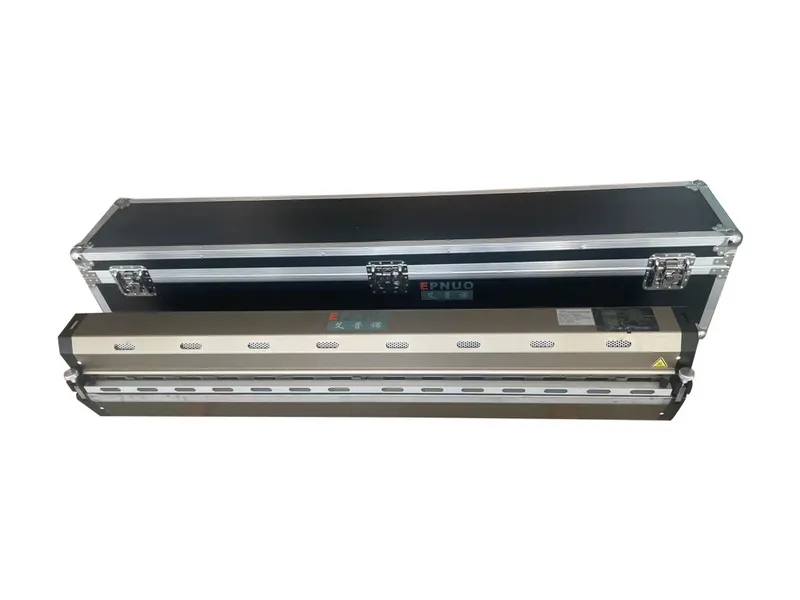

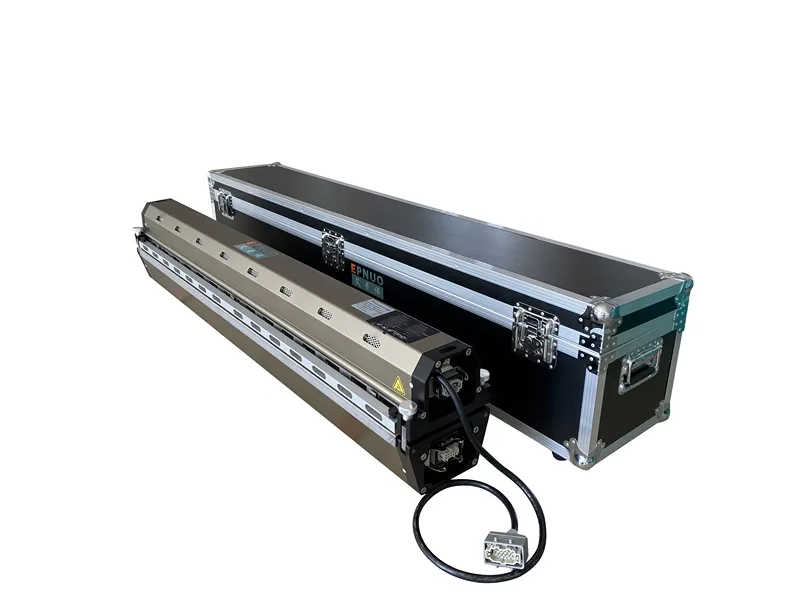

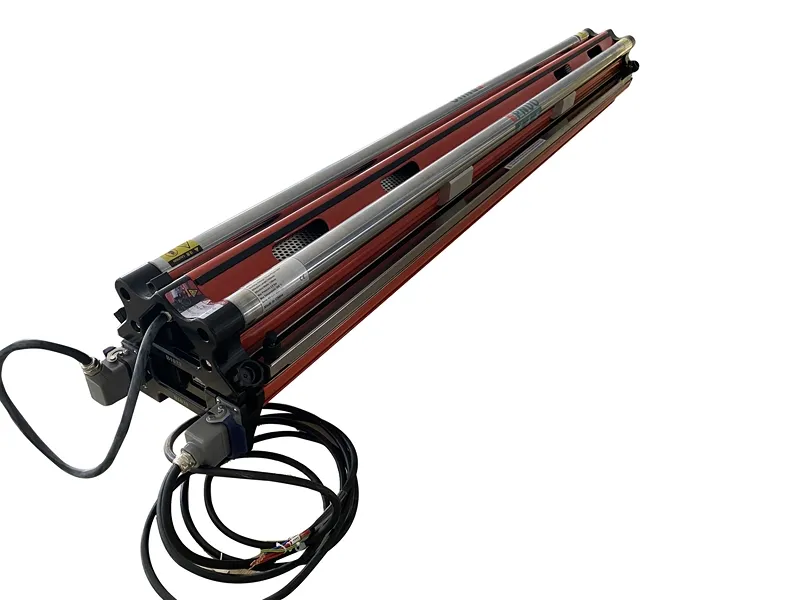

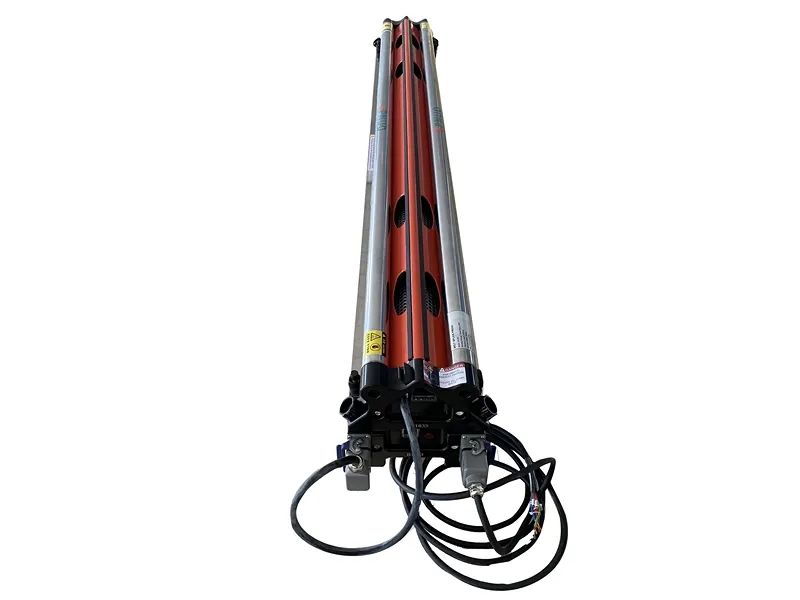

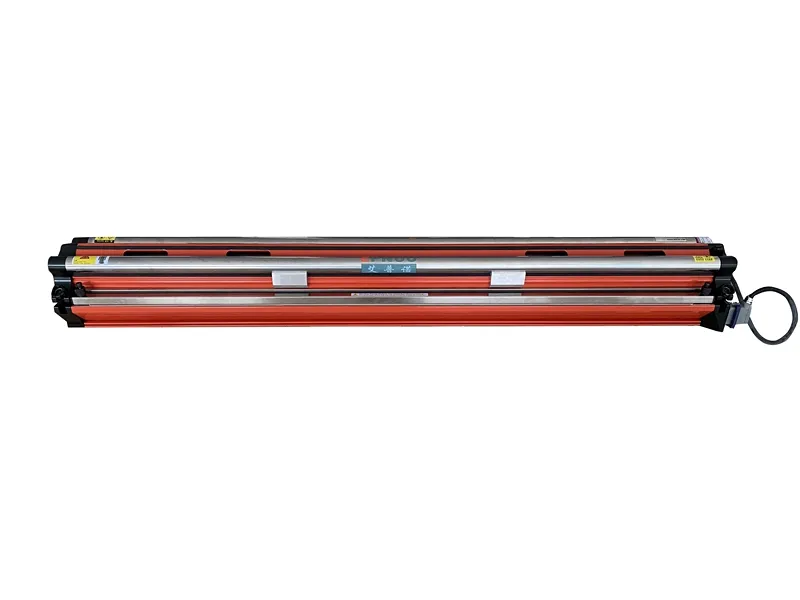

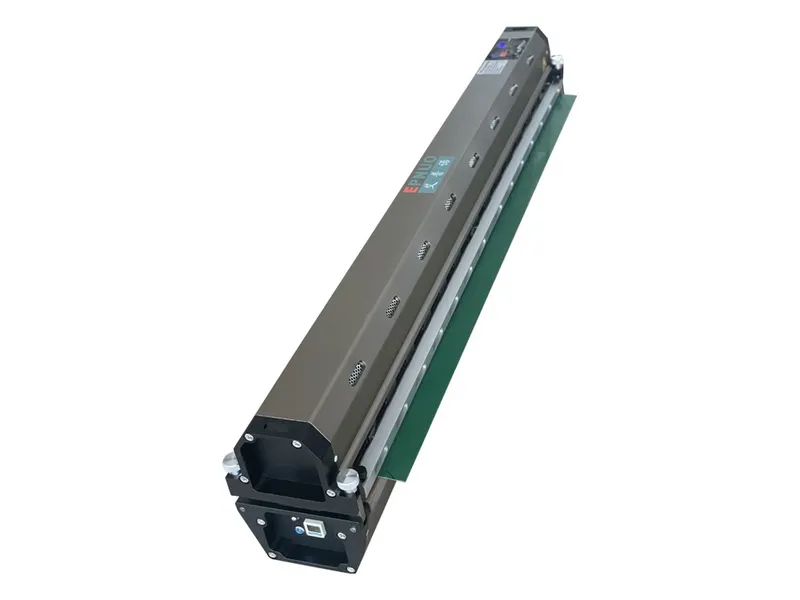

Portable Air Aero Splice Press

Air cooled splice press for splicing PVC conveyor belts
Portable Air Aero Splice Press
Effective Splice Length: 300-2100mm
Portable Air Aero Splice Press
Effective Splice Width: 150-180mm
Portable Air Aero Splice Press
Portable Air Aero Splice Press
Portable Air Aero Splice Press
Portable Air Aero Splice Press
Portable Air Aero Splice Press
Portable Air Aero Splice Press
Portable Air Aero Splice Press

Designed for PVC and PU conveyor belts, this portable air-cooled splice press features an integrated cooling system with no need for external components such as water tanks or pumps, making it ideal for on-site belt splicing and mobile repair work. Its compact, all-in-one design allows for easy operation and transport without compromising precision or control. The portable splice press simplifies the splicing process and ensures greater consistency, offering faster cycle times and enhanced reliability, helping operators minimize downtime and maximize productivity.

Request a Quote DownLoad
Technical Parameters
Input Power: 110–240V AC, 50/60Hz
Temperature Probe: K/J-Type thermocouple
Display Range: 0–200°C; Accuracy: ±1°C
Temperature Control: E1–E2 (Default: 150°C)
Countdown Range: 0-300 seconds (E7 set to 0), 0-60 minutes (E7 set to 1)
Splice Pressure: Internal compressor, max. 2 bar (28 psi)
Max Splice Temperature: 200°C (392°F)
Cooling Method: Air-cooled to safe temperature for belt removal
Advanced Control: Adjustable dwell time, Independent top and bottom heating control, Optional preheat and preheat dwell time for thicker belts
Working Environment:
Temperature: -10 - 60℃ (-14-140℉)
Humidity: 20%-90% RH
Features
Intelligent control system to ensure precise management of the splicing process with intuitive operation
Real-time temperature display that monitors heating conditions to maintain optimal splice quality
Parameter display & countdown timer that shows set parameters and remaining cycle time for better process visibility
Independent dual-zone temperature control that allows separate regulation of top and bottom heating plates for greater flexibility
Parameter locking function to prevent accidental adjustments during operation
Automatic memory function recalls the last used settings for faster repeat operations
Self-diagnostic system that detects and displays faults for easier maintenance and troubleshooting
Specifications
Model 300AIR 600AIR 900AIR 1200AIR 1500AIR 2100AIR
Effective Splice Length 300mm 600mm 900mm 1200mm 1500mm 2100mm
Effective Splice Width 150mm 150mm 150mm 150mm 150mm 180mm
Weight of Lower Part 12kg 24kg 36kg 48kg 60kg 79kg
Weight of Upper Part 9kg 18kg 27kg 36kg 45kg 62kg
Machine Weight 21kg 42kg 63kg 84kg 105kg 141kg
Overall Length 480mm 780mm 1080mm 1380mm 1680mm 2300mm
Overall Height 310mm 310mm 310mm 310mm 310mm 360mm
Overall Width 230mm 230mm 230mm 230mm 230mm 280mm
Max. Pressure 4Bar 4Bar 4Bar 4Bar 2-3Bar 2.5Bar
Max. Temperature 200˚C 200˚C 200˚C 200˚C 200˚C 200˚C
Inner Packing Size 800×350×400mm 1100×350×400mm 1400×350×400mm 1700×350×400mm 2000×350×400mm 2670×400×460mm
Inner Packing Weight 6kg 10kg 16kg 22kg 28kg 40kg
Outer Packing Size 870×470×630mm 1170×470×630mm 1470×470×630mm 1770×470×630mm 2070×470×630mm 2750×520×680mm
Total Weight 39kg 75kg 113kg 152kg 191kg 230kg
Power 1.8kW 3.6kW 5.4kW 7.2kW 9.0kW 12.6kW

These presses are typically compact and lightweight, making them easy to carry and use in mobile applications. They are equipped with an integrated air-cooling system and internal air compressor, eliminating the need for external water pumps or compressors. The system also includes reliable automatic temperature and time control, allowing for precise adjustment of the vulcanization process.

While primarily designed for PVC belt splicing, it can also be used with certain thermoplastic materials that share similar properties, such as some types of TPU. However, it is not suitable for rubber or other materials with significantly different vulcanization requirements, as those require entirely different process conditions.
